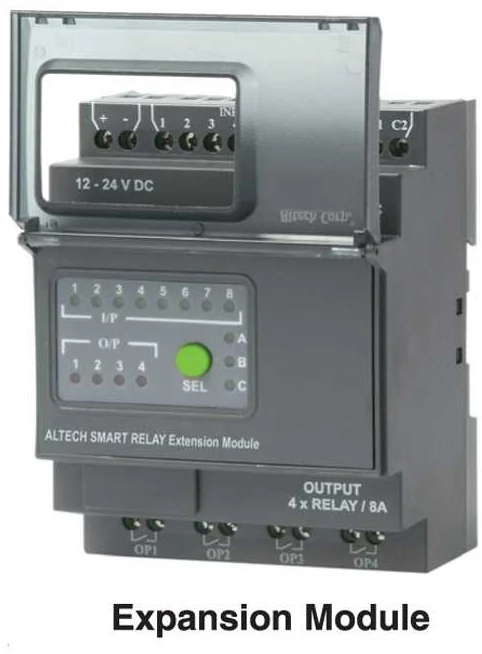

ASR-E24DC
PLC Modulo de Expansion c/6 Entradas Digitales,12-24VCDExpansion Module Smart Relay Standard Features Supports upto 48 I/Os (32 digital inputs & 16 digital outputs) DST Feature Available Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device PC software for programming, online & offline simulation, documentation & printing Designed for use in automation for commercial & Industrial sectors Modbus Communication
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Smart Relays - Module Type
- Expansion Module
- Smart Relays - Digital Inputs
- 6
- Smart Relays - Digital Input Range
- (0-4VDC) OFF,(8-26.4VDC) ON
- Smart Relays - Analog Inputs
- 2 (can be used as Digital Inputs)
- Smart Relays - Analog Input Range
- 0 to 10 VDC
- Smart Relays - Digital Relay Output
- 4 NO (8A@240V AC, 5A@30V DC)
- Smart Relays - Weight
- 0.5 lb. (225 g)
- Smart Relays - I/O Extensions (Max.)
- 3
- Smart Relays - Utilization Category
- AC-15- Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A DC-13- Rated Voltage (Ue): 24/125/250 V, Current (Ie): 2.0/0.22/0.1 A
- Smart Relays - Power Reserve (For Clock Only)
- 150h at -10°C to +55°C
- Smart Relays - Operating temperature
- -10°C to +55°C
- Smart Relays - Storage temperature
- -25°C to +70°C
- Smart Relays - Humidity (Non Condensing)
- 95% (Rh)
- Smart Relays - Enclosure
- Flame Retardant UL 94-V0
- Smart Relays - Mounting
- Base / DIN Rail
- Smart Relays - Degree of Protection
- IP 20 for Terminals, IP 40 for Enclosure
Datos del producto
- Marca
- Altech
- Número de parte
- ASR-E24DC
- Línea
- Smart Relays
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
