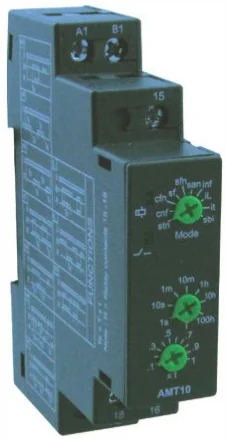

AMTAS-S1
Universal Multi-TimerUniversal Multi-Timer Altech's Universal Multi-Timers comprises 2 models featuring 2 or 10 timing functions to offer highest flexibility in controlling operations. The time range is adjustable from 0.1s to 100h. Dials on the front make it easy to use. Features Multifunctional Timer (10 Functions) Asymmetric Timer (2 Functions) Universal Voltage 12-265V AC/ DC Wide Time Range: 0.1 s - 100h LED Indicator for Power and Relay Status DIN Rail Mounted 17.5mm Width Downloads: • Data Sheet
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Digital Timers - Output Contacts
- 1 C/0
- Digital Timers - No. of Timer Functions
- 2
- Digital Timers - Supply Voltage
- 12 - 265 VACI DC (50, 60Hz)
- Digital Timers - Power Consumption
- 2 VA max.
- Digital Timers - Timing Range
- 0.1s -100h
- Digital Timers - Reset Time
- 200ms max.
- Digital Timers - Repeat Accuracy
- 1.00%
- Digital Timers - Output Contact Rating
- 8A @ 240V AC / 5A@240V DC (resistive)
- Digital Timers - Electrical Life
- 10,000 switching cycles
- Digital Timers - Mechanical Life
- 1,000,000 switching cycles
- Digital Timers - AC-15 Rating
- Voltage (Ue): 125/ 240V, Current (le): 3/1.5A
- Digital Timers - DC-13 Rating
- Voltage (Ue): 125/ 250V, Current (le): 2/0.22/0.1 A
- Digital Timers - Operating Temperature
- -10°C -+60°C (+14°F -131°F)
- Digital Timers - Storage Temperature
- -15°C -+70°C (-4°F -149°F)
- Digital Timers - Weight
- 70g (0.14Ib.)
- Digital Timers - Protection
- IP30 (Enclosure), IP20 (Terminals)
- Digital Timers - Torque
- 0.60 Nm (6 lb.in.)
- Digital Timers - Terminal Wire Size
- 0.3-2.5 mm2 (18-10 AWG)
Datos del producto
- Marca
- Altech
- Número de parte
- AMTAS-S1
- Línea
- Programmable Panel-Mount Digital Multi-Timer
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
