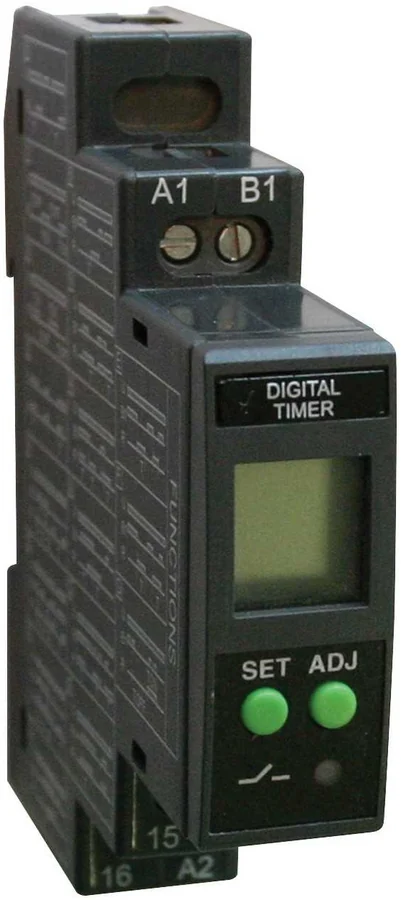

AMT8-S1
Universal Digital Multi-TimerUniversal Digital Multi-Timer Altech's AMT-Series of Universal Digital Multi-Timers comprises 4 models featuring 8 or 18 timer functions to offer highest flexibility in controlling operations. The time range is adjustable from 0.1 s to 999h. An LCD display shows current run time information. Features Multifunctional Timer (8 or 18 Functions) Universal Voltage 24-265 VACI DC Wide Time Range: 0.1 s - 999h 3 Digit LCD Display for Preset Time and Run Time DIN Rail Mounted 17.5mm Width Downloads: • D
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Digital Timers - Output Contacts
- 1 C/0
- Digital Timers - No. of Timer Functions
- 8
- Digital Timers - Supply Voltage
- 24 - 265 VACI DC (50, 60Hz)
- Digital Timers - Power Consumption
- 10VA max.
- Digital Timers - Timing Range
- 0.1s ~ 999h
- Digital Timers - Reset Time
- 200ms max.
- Digital Timers - Repeat Accuracy
- Repeat Accuracy:+-0.5%
- Digital Timers - Timing Accuracy
- +/- 0.01%
- Digital Timers - Output Contact Rating
- 8A @ 240V AC / 5A@240V DC (resistive)
- Digital Timers - Electrical Life
- 10,000 switching cycles
- Digital Timers - Mechanical Life
- 2,000,000 switching cycles
- Digital Timers - AC-15 Rating
- Rated Voltage (Ue): 125/ 240V, Rated Current (le): 3/1.5A
- Digital Timers - DC-13 Rating
- Rated Voltage (Ue): 125/ 250V, Rated Current (le): 2/0.22/0.1 A
- Digital Timers - Operating Temperature
- -10°C - +55°C (+14°F - 131°F)
- Digital Timers - Storage Temperature
- -20°C - +65°C (-4°F - 149°F)
- Digital Timers - Weight
- 85g (0.14Ib.)
- Digital Timers - Protection
- IP30 (Enclosure), IP20 (Terminals)
- Digital Timers - Torque
- 0.40 Nm (3.5 lb.in.)
- Digital Timers - Terminal Wire Size
- 0.3-2.5 mm2 (22-14 AWG)
Datos del producto
- Marca
- Altech
- Número de parte
- AMT8-S1
- Línea
- Programmable Panel-Mount Digital Multi-Timer
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
