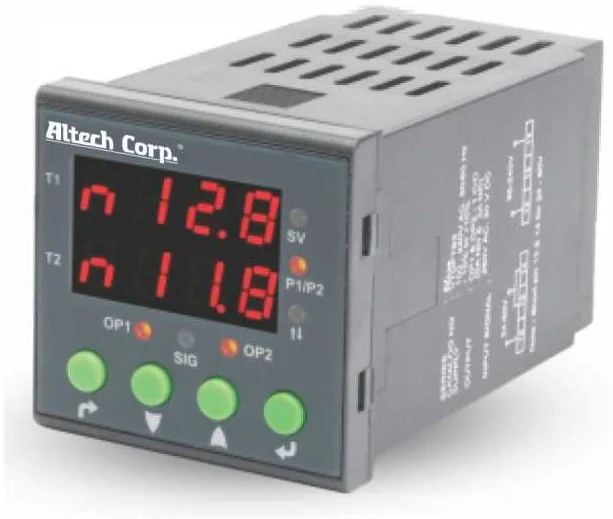

AMT33-S2
Programmable Panel-Mount Digital Multi-TimerProgrammable Panel-Mount Digital Multi-Timer Altech's AMT33 Series of Programmable Panel-Mount Digital Multi-Timers comprises 2 models featuring 33 Timing Functions and 2 separate Outputs with selectable Timing modes for maximum flexibility in automation and control applications. Timing Range is adjustable from 0.1s to 999 days. A Digital 7-Segment shows current Run Time information and lnput/Output states.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Digital Timers - No. of Timer Functions
- 33
- Digital Timers - Supply Voltage
- 110-240VAC (-20% to +10%), 50/ 60Hz
- Digital Timers - Power Consumption
- 9 VA max.
- Digital Timers - Timing Range
- 0.1 s - 999 days
- Digital Timers - Reset Time
- max. 200ms/ 1 00ms
- Digital Timers - Timing Accuracy
- +/- 0.01%
- Digital Timers - Output Contact Rating
- 5A (NO), 3A (NC)
- Digital Timers - Electrical Life
- 10,000 switching cycles
- Digital Timers - Mechanical Life
- 500,000 switching cycles
- Digital Timers - AC-15 Rating
- 250VAC/ 2A, cos equals0.6, 85°C
- Digital Timers - DC-13 Rating
- Rated Voltage (Ue): 24VDC, Rated Current (le): 2.0A
- Digital Timers - Operating Temperature
- -5°C - +55°C (+23°F - 131°F)
- Digital Timers - Storage Temperature
- -10°C - +60°C (14°F - 140°F)
- Digital Timers - Weight
- 160g (0.35Ib)
- Digital Timers - Protection
- IP30 (Enclosure), IP20 (Terminals)
- Digital Timers - Torque
- 0.50 Nm (3.5Ib.in.), M3 screw
- Digital Timers - Terminal Wire Size
- 0.12-2.0mm2 (26-14AWG)
- Digital Timers - Input Signal
- High Range: 85-265VAC/ 100-265DC, Low Range: 24-60V AC/DC
- Digital Timers - Signal Sensing Time
- 50ms max. (10ms for DC)
- Digital Timers - Signal Wait Period
- 1 00ms @ Power on/ signal based modes
- Digital Timers - Signal Isolation
- 2kV
Datos del producto
- Marca
- Altech
- Número de parte
- AMT33-S2
- Línea
- Programmable Panel-Mount Digital Multi-Timer
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
