AMD-SP300

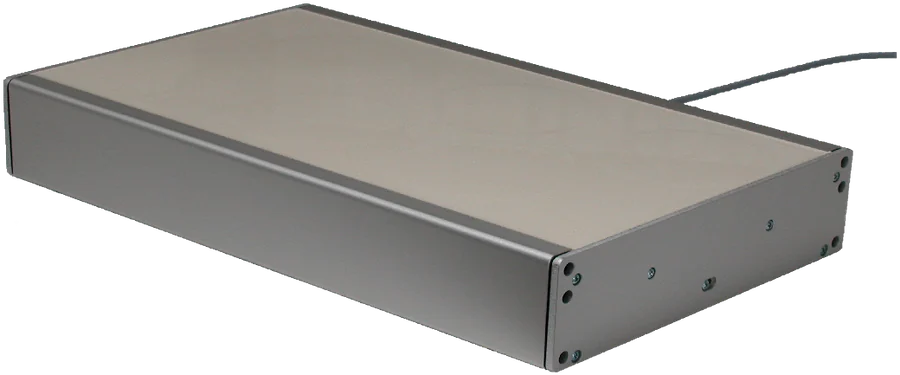

SP Series Flat SensorsSP Series Flat Sensor Altech SP Series Flat Sensors are used on conveyor belts and chutes to detect all types of metal in the material being handled. They are used for quality checks and machine protection. Other applications include counting of objects and completeness checks.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Metal Detection - Operating Temp.
- 0°C..+50°C
- Metal Detection - Protection Class
- IP65
- Metal Detection - Housing Material
- Aluminum
- Metal Detection - Storage Temperature
- -10°C..+50°C
- Metal Detection - Dimensions
- Width x 210 x 60.5mm
- Metal Detection - Connection
- 2m PVC cable (other on request)
- Metal Detection - Fe Plate 30x30x1mm
- 95mm
- Metal Detection - Fe Plate 12x12x1mm
- 68mm
- Metal Detection - Nut M6
- 56mm
- Metal Detection - Nut M4
- 44mm
- Metal Detection - Nut M2.5
- 33mm
- Metal Detection - Fe Ball 7mm
- 44mm
- Metal Detection - Fe Ball 3mm
- 20mm
- Metal Detection - Fe Ball 2mm
- 8mm
- Metal Detection - Width
- 300mm
- Metal Detection - Length
- 150..1200mm
- Metal Detection - Active Surface
- Polyurethane
- Metal Detection - 1-Channel
- 8349005010/ 8349005012
- Metal Detection - 10-Channel
- 8349005000/ 8349005001
Datos del producto
- Marca
- Altech
- Número de parte
- AMD-SP300
- Categoría
- Sensores
- Precio y entrega
- Por cotización
