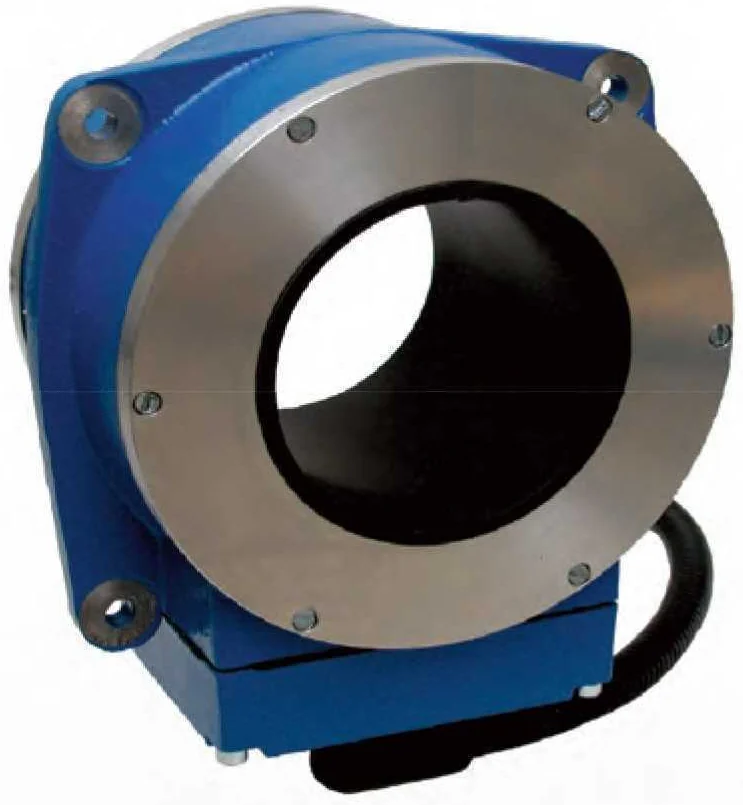

AMD-RG70-DPLUS
AltechDistribuidor autorizado

AMD-RG70-DPLUS

Ultra-High Sensitivity Ring SensorUltra-High Sensitivity Ring Sensor, 70mm Inner Diameter Ultra-High Sensitivity Ring sensors are used in applications where the KJR Series is not sufficient. Advantages are their extremely High Sensitivity and the possibility to analyze the Sensor Signal to eliminate e.g. product effects with the included control unit Standard Features Extremely High sensitivity (0.2mm metal targets) 85-265V AC universal supply voltage Stainless Steel Control Unit included Various Ring Diameters (25-100mm) Analys

CantidadPrecio y entrega: Por cotización

¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

Especificaciones técnicas

Metal Detection - Operating Temp.
-10°C..+50°C (14°F..122°F)
Metal Detection - Protection Class
Sensor: IP54, Control Unit: IP65
Metal Detection - Storage Temperature
-10°C..+50°C
Metal Detection - Inner diameter
70mm
Metal Detection - Height
95mm
Metal Detection - Ferrous Steel
0.6mm
Metal Detection - Stainless Steel
1.1mm

Datos del producto

Marca
Altech
Número de parte
AMD-RG70-DPLUS
Categoría
Medición y monitoreo
Precio y entrega
Por cotización
