AMD-FS2-RES-CH

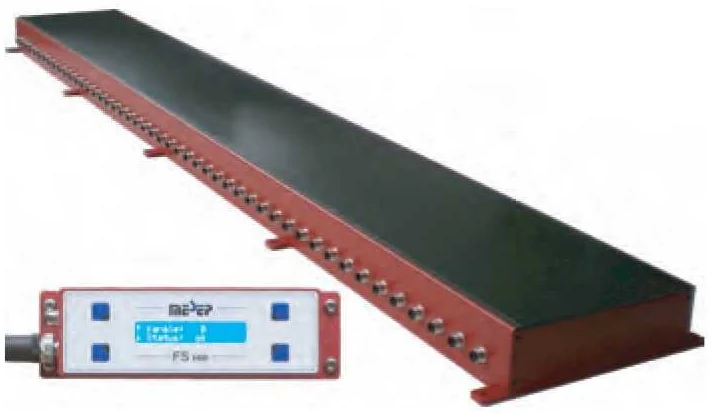

FS Series Multi-Channel Flat SensorsFS Series Multi-Channel Flat Sensors Altech FS Series Flat Sensors are high Sensitivity Flat Sensors which are not only detecting smallest metal pieces, they are also capable of localizing them. They are mainly used in Recycling Industry Applications. It allows the user to separate metallic particles precisely from other parts. It can be used on conveyor belts, slides or free-fall applications.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Metal Detection - Operating Temp.
- -10°C..+60°C
- Metal Detection - Protection Class
- IP65
- Metal Detection - Housing Material
- Steel
- Metal Detection - Storage Temperature
- -10°C..+70°C
- Metal Detection - Power Consumption
- 10mA per channel
- Metal Detection - Dimensions
- Width x 210 x 60.5mm
- Metal Detection - Connection
- 2m PVC cable (other on request)
- Metal Detection - Fe Ball 3mm
- Channel size 12.5...19mm: 15mm, Channel size 50...120mm: 20mm
- Metal Detection - Fe Ball 2mm
- Channel size 12.5...19mm: 7mm, Channel size 50...120mm: 8mm
- Metal Detection - Fe Ball 2.5mm
- Channel size 12.5...19mm: 11mm, Channel size 50...120mm: 14mm
- Metal Detection - Fe Ball 4.5mm
- Channel size 12.5...19mm: 24mm, Channel size 50...120mm: 30mm
- Metal Detection - Length
- (No Channels +1) X Resolution
- Metal Detection - Active Surface
- POM
- Metal Detection - Electrical/ Supply Data
- 20..25VDC
- Metal Detection - No. of Channels
- 4...160
- Metal Detection - Resolution (Channel Width)
- 12.5..120mm
- Metal Detection - FS HMI
- 8310200003
- Metal detection - Conveyor Speed
- 5...300m/min (16...984ft/min)
Datos del producto
- Marca
- Altech
- Número de parte
- AMD-FS2-RES-CH
- Categoría
- Sensores
- Precio y entrega
- Por cotización
