AMD-BDWH-CU
AltechDistribuidor autorizado

AMD-BDWH-CU

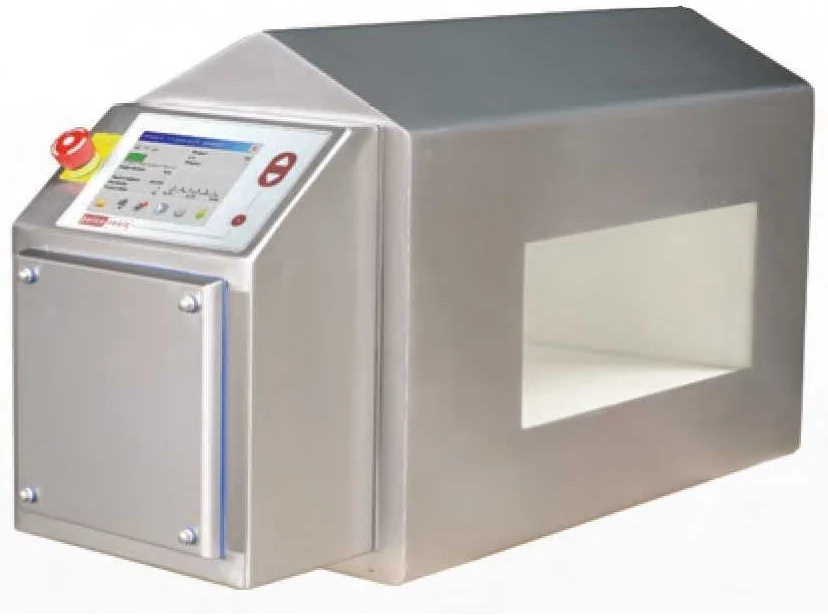

BD Series Tunnel SensorBD Series Tunnel Sensor Altech BD Series Tunnel Sensors are used where highest detection capacities, sensitivity and reliability are needed. The user can choose between different control units depending on the complexity of his application. Applications include conveyors in the Plastic and Recycling Industry. The stainless steel housing also allows installation in the food industry. The unit is maintenance and calibration free.

CantidadPrecio y entrega: Por cotización

¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

Especificaciones técnicas

Metal Detection - Operating Temp.
0°C..+50°C
Metal Detection - Protection Class
IP65
Metal Detection - Housing Material
Stainless Steel
Metal Detection - Storage Temperature
-10°C..+50°C
Metal Detection - Height
Sensor Opening; 50mm..750mm (25mm steps)
Metal Detection - Width
Sensor Opening; 100mm..1400mm (50mm steps)
Metal Detection - Sensor Material Inside
Epoxy
Metal Detection - Mounting
4 x threaded pin M12 x 45
Metal Detection - Control Unit
Digital Plus or M-Pulse (Mounted directly to the Tunnel or up to 3m away)

Datos del producto

Marca
Altech
Número de parte
AMD-BDWH-CU
Categoría
Sensores
Precio y entrega
Por cotización
