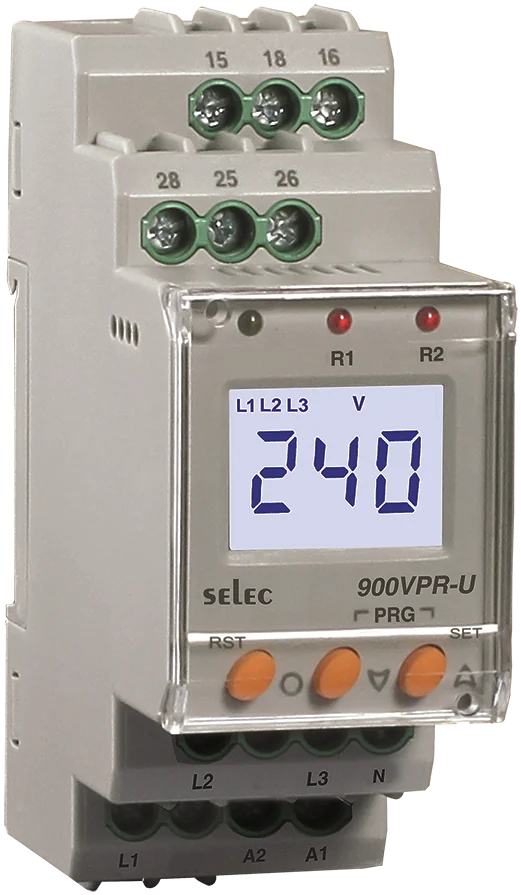

900VPR-1-BL-U-CE
Digital 3Ø Voltage / Phase / Frequency Relay900VPR-1-BL-U-CE - Digital 3Ø Voltage / Phase / Frequency Relay- Backlit Liquid Crystal Display Features • 3Ø - 3 Wire, 3Ø - 4 Wire Input • Monitors Under voltage, Over voltage, Under frequency, Over frequency, Phase asymmetry, Phase failure, Phase sequence and Neutral Loss • True RMS measurement • Power ON delay, Trip time delay and Recovery time delay • Adjustable switching hysteresis • Two alarm relay with NC or NO operation selectable • LCD with backlight • DIN Rail Mount • Size: 35mm (Width
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 85-270V AC/DC
- Process Controllers - LED Indication
- LED 1: Relay 1, LED 2: Relay 2
- Process Contollers - Input Voltage
- 85-270 V AC/DC
- Process Controllers - Input Measurement
- Under Voltage / Over Voltage / Under Frequency / Over Frequency / Phase Asymmetry / Phase Failure / Neutral Loss and Phase Sequence
- Process Controllers - Trip Setting
- Under Voltage: 85-500 V AC [L-L] (3Ø-3 wire) 50-288 V AC [L-N] (3Ø-4 wire), Over Voltage: 85-500 V AC [L-L] (3Ø-3 wire), 50-288 V AC [L-N](3Ø-4 wire), Under Frequency: 45-65Hz,* See Data Sheet for more information
- Process Controllers - Main Output
- SPDT -2 C/O - NO: 5A, 250 V AC and NC:3A, 250 V AC
- Process Controllers - Trip Time Settings
- Power ON Delay: 2-99.9 sec / Trip Time Delay: 0-99.9 sec / Recovery Time Delay: 0-99.9 sec / Response Time: greater than 200ms
- Process Controllers - Hysteresis
- Voltage: 1-40 V / Frequency: 0.1-2 Hz / Asymmetry: 2-20%
- Process Controllers - Reset
- Auto/Manual (Selectable)
- Process Controllers - Operating Temperature
- -25 to 55°C (-13 to 131°F)
- Process Controllers - Storage Temperature
- -25 to 70°C (-13 to 158°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 150 grams (.33 lbs)
- Process Controllers - Display Type
- Liquid Crystal Display
- Process Controllers - Digits
- 1 row of 3 digits
- Process Controllers - Latching
- Selectable
- Process Controllers - Electrical Connection
- 3Ø-3 wire, 3Ø- 4 wire
- Process Controllers - Protection Level
- IP50 (for faceplate), IP30 (for housing), IP20 (for terminals)
- Process Controllers - Voltage
- 1V
- Process Controllers - Alarm Indications
- Trip
- Process Controllers - Frequency
- 0.1 Hz
- Process Controllers - Time Setting
- +/- 5% of setting, + 200ms
