800XC-CU

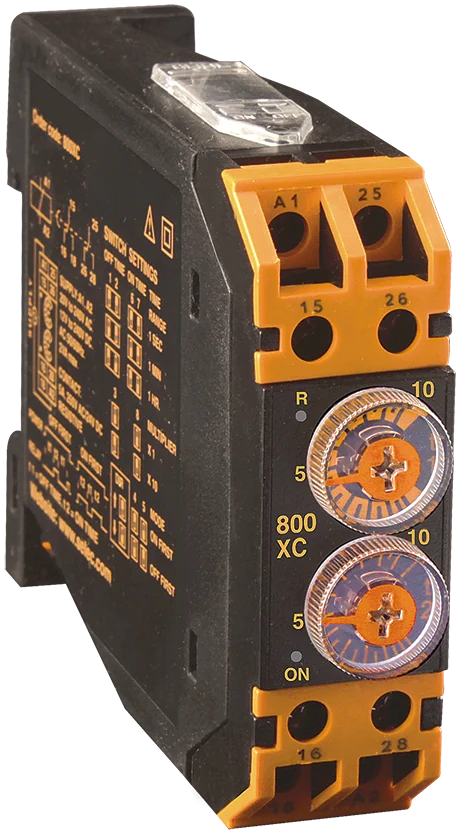

Analog Cycle Timer, DPDT800XC-CU - Analog Cycle Timer, DPDT 22mm DIN Rail Features • Cyclic with Unequal ON and OFF Time • 6 Time Ranges, Seconds/Minutes/Hours • Universal Supply Voltage • DIN Rail / Back Panel Mount • Finger Safe Terminals • Size: 22.5mm (width) DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 20 to 240V AC; 12 to 240V DC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay
- Process Contollers - Input Voltage
- 20-240V AC (50/60Hz) and 12-240V DC
- Process Controllers - Main Output
- DPDT - 2 C/O - 5A @ 230V AC / 24 V DC, resistive
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 2VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 110 grams (.242 lbs)
- Process Controllers - Display Type
- 7 Segment LED Display
- Process Controllers - Modes
- Cyclic ON first or OFF first
- Process Controllers - Time Ranges
- 0-1 sec/min/hr (On time) / 0-10 sec/min/hr (ON time) / 0-1 sec/min/hr (OFF time) / 0-10 sec/min/hr (OFF time)
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.
Datos del producto
- Marca
- Altech
- Número de parte
- 800XC-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
