600VPR-170/290-CU

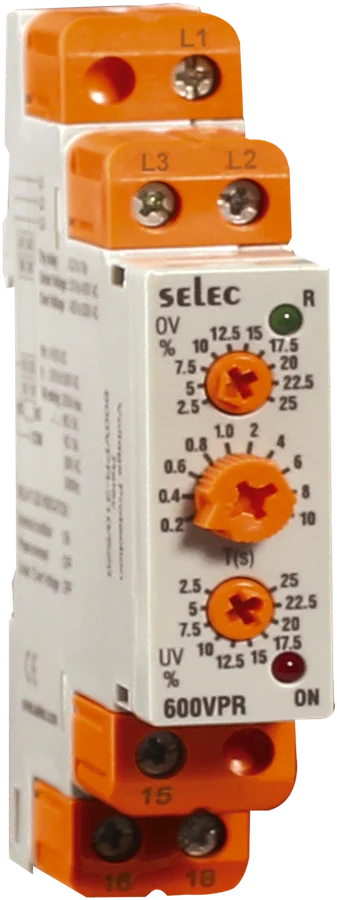

Analog / Digital Protection Relay600VPR-170/290-CU - Analog / Digital Protection Relay- Analog 3Ø Self Powered Voltage / Phase Protection Relay, LED Indication Features • 3Ø - 3 Wire Input • Self Powered • Monitors Under Voltage, Over Voltage, Phase Sequence and Phase Failure • Trip time delay (T); 0.2 to 10 sec • Slim, Space Saving Design • DIN Rail Mount • Size: 17.5mm (width) DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 170 to 290V AC
- Process Controllers - LED Indication
- Relay ON, Power ON
- Process Contollers - Input Voltage
- Self Powered 170-290V AC
- Process Controllers - Input Measurement
- Under Voltage/ Over Voltage / Phase Failure / Phase Sequence
- Process Controllers - Trip Setting
- Under Voltage: 170-224V AC / Over Voltage: 236-290V AC
- Process Controllers - Trip Delay
- 0.2 - 10 sec
- Process Controllers - Main Output
- SPDT - 1 C/O - NO: 5A, 250 V AC and NC:3A, 250 V AC
- Process Controllers - Trip Time Settings
- Power ON Delay: 0.4 sec / Trip Time Delay: 0.2-10 sec
- Process Controllers - Reset
- Auto reset on removal of fault condition
- Process Controllers - Power Consumption
- 20VA max
- Process Controllers - Trip Voltage
- +/- 5% of Full Scale
- Process Controllers - Trip Time
- +/-5% of Full Scale
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 62 grams (.13lbs)
Datos del producto
- Marca
- Altech
- Número de parte
- 600VPR-170/290-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
