600SD-2-110-CU

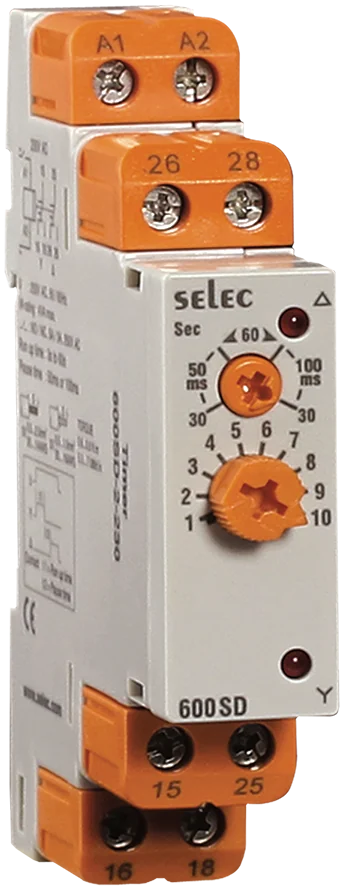

Analog Star-Delta Timer600SD-2-110-CU - Analog Star-Delta Timer 17.5mm DIN Rail Features • Star Delta • 2 Time Ranges • DIN Rail • Size: 17.5mm (width) DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 110V AC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay
- Process Contollers - Input Voltage
- 230V AC and 110V AC (50/60Hz)
- Process Controllers - Main Output
- SPDT -1C/O - Relay each for star and delta
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 4VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 73 grams (.163 lbs)
- Process Controllers - Display Type
- Analog Timer
- Process Controllers - Modes
- Star-Delta
- Process Controllers - Time Ranges
- 3 -30 sec / 6 - 60 sec Pause time: 50/100m sec
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec. Pause time accuracy: 5% or +/-5m sec
Datos del producto
- Marca
- Altech
- Número de parte
- 600SD-2-110-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
