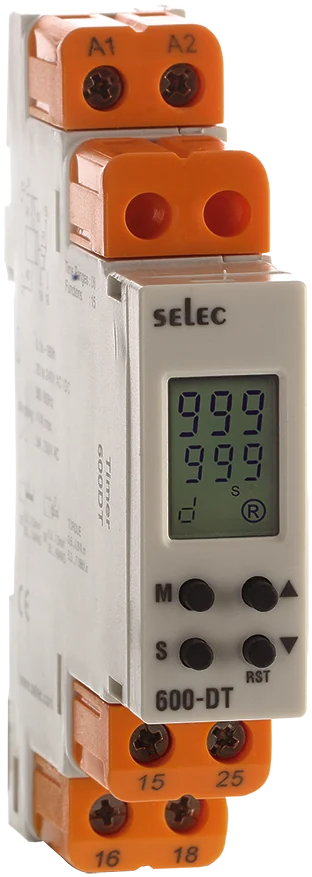

600DT-CU
Digital Multifunction Timer600DT-CU - Digital Multifunction Timer 17.5mm DIN Rail Features • 15 Functions • 8 Time Ranges, Seconds/Minutes/Hours • Front Key Pad Setting • Universal supply voltage • Slim, Space Saving Design • DIN Rail Mount • Size: 17.5 mm (width) DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 12–240V AC/DC
- Process Contollers - Input Voltage
- 20-240V AC/DC (50/60Hz)
- Process Controllers - Main Output
- SPDT - 1C/O - 8A @ 250V AC
- Process Controllers - Reset
- Front key, on interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 4VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 69 grams (.152 lbs)
- Process Controllers - Display Type
- Liquid Crystal Display
- Process Controllers - Digits
- 3 rows of 3 digits
- Process Controllers - Resolution
- Decimal point position selectable 1/0.1 sec
- Process Controllers - Protection Level
- IP40 (for casing) IP20 (for terminals)
- Process Controllers - J, K,T / TC INPUTS*
- Setting: +/- 0.1% of set time or +/-50m sec For Y contact operation: +100m sec Repeat +/- 0.1%
- Process Controllers - Modes
- On delay / Interval / Asymmetrical cyclic equal OFF first / Asymmetrical cyclic equal ON first / Cyclic equal OFF first / Cyclic equal ON first / Pulse output / Delay on break *See rest on data sheet
- Process Controllers - Counting Direction
- Down
- Process Controllers - Memory
- Yes (Selectable)
- Process Controllers - Time Ranges
- 0-99.9 sec/min/hr / 0-99.9 sec/min/hr / 0-9:59 min: sec / 0-9:59 hr:min
Datos del producto
- Marca
- Altech
- Número de parte
- 600DT-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
