55XC-P8-CU

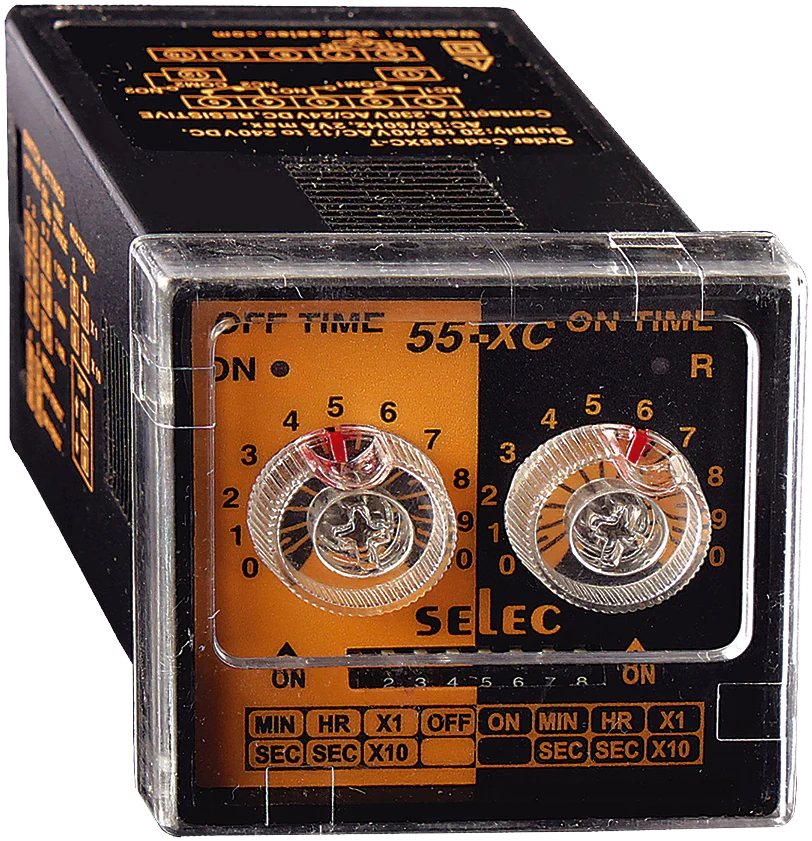

Analog Cycle Timer, DPDT55XC-P8-CU - Analog Cycle Timer, DPDT Panel Mount - Plug In Features • Cyclic With Unequal ON and OFF Time • 6 Time Ranges, Seconds/Minutes/Hours • Universal Supply Voltage • Compact Size • Size: 1/16 DIN 48mm x 48mm • Panel Mount / Plug-in Timer DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 20 to 240V AC; 12 to 240V DC
- Process Contollers - Input Voltage
- 20-240V AC/DC (50/60Hz)
- Process Controllers - Main Output
- DPDT - 2 C/O - 5A @ 230V AC / 24 V DC, resistive
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 3VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 80 grams (.176 lbs)
- Process Controllers - Display Type
- Analog Timer
- Process Controllers - Resolution
- Analog
- Process Controllers - Protection Level
- IP40 (for faceplate)
- Process Controllers - Modes
- Cyclic ON first or OFF first
- Process Controllers - Time Ranges
- 0-1 sec/min/hr (On time) / 0-10 sec/min/hr (ON time) / 0-1 sec/min/hr (OFF time) / 0-10 sec/min/hr (OFF time)
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.
- Process Controllers - Terminal Connection
- 8 Pin*
Datos del producto
- Marca
- Altech
- Número de parte
- 55XC-P8-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
