55ES-P8-110-CU

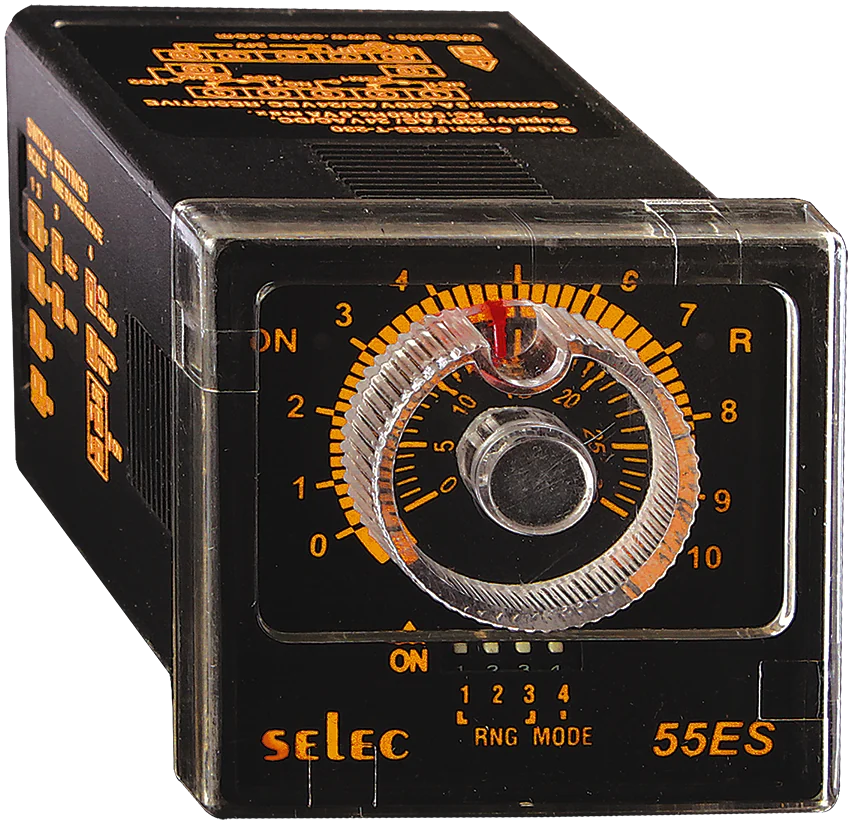

Analog ON-Delay / Interval Timer, SPDT55ES-P8-110-CU - Analog ON-Delay / Interval Timer, SPDT Panel Mount - Plug In Features • ON Delay / Interval • 8 Time Ranges, Seconds/Minutes • Dual Supply Voltage • Compact Size • Size: 1/16 DIN 48mm x 48mm • Panel Mount / Plug-in Timer DATA Sheet Link < Product photo may vary depending on part number selection.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Process Controllers - Supply Voltage
- 110V AC and 24V AC/DC
- Process Controllers - LED Indication
- LED 1: Power On, LED 2: Relay On
- Process Contollers - Input Voltage
- 230V AC and 24V AC/DC (50/60Hz) OR 110V AC and 24V AC/DC (50/60Hz)
- Process Controllers - Main Output
- SPDT -1 C/O - 5A @230V AC / 24 V DC, resistive
- Process Controllers - Reset
- On interruption of power; Reset time greater than 100m sec
- Process Controllers - Power Consumption
- 6VA max
- Process Controllers - Operating Temperature
- 0 to 50°C (32 to 122°F)
- Process Controllers - Storage Temperature
- -20 to 75°C (-4 to 167°F)
- Process Controllers - Humidity (Non-Condensing)
- 95% Relative Humidity
- Process Controllers - Weight
- 80 grams (.176 lbs)
- Process Controllers - Display Type
- Analog Timer
- Process Controllers - Resolution
- Analog
- Process Controllers - Protection Level
- IP40 (for faceplate)
- Process Controllers - Modes
- ON delay/interval
- Process Controllers - Time Ranges
- 0-3 sec/min / 0-10 sec/min / 0-30 sec/min / 0-60 sec/min
- Process Controllers - Timer
- Setting +/-5% of Full Scale Repeat +/-0.5% or 50m sec.
- Process Controllers - Terminal Connection
- 8 Pin*
Datos del producto
- Marca
- Altech
- Número de parte
- 55ES-P8-110-CU
- Línea
- Process Controllers
- Categoría
- Medición y monitoreo
- Precio y entrega
- Por cotización
