51.665R

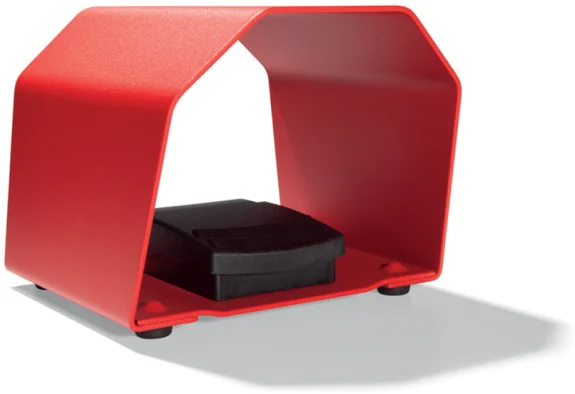

FM1...U Compact, one pedal foot switch with foot guard51.665R - FM1...U Compact, one pedal foot switch with foot guard Standard Features Housing: Black ABS body with a variety of pedal colors Protection Level: IP 43 and IP 65 Switch Insert: Snap action microswitch, UL/CSA approved Electrical Rating: 5A/125-250V AC (If used with appropriate cable, see cable chart on page 29) Contact Types: Momentary, maintained, or two stage momentary Circuit: SPDT-SB, DPDT-SB, 2x SPDT-SB Strain Relief: Vinyl sleeve Cable: - Multi conductor, PVC, SJT, 2 m (6 ft. - 6
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Foot Switch - Circuit Function
- 2x SPDT-SB
- Foot Switch - Electrical Ratings
- 5A/250V AC
- Foot Switch - Switch/Contact Type
- Snap Action, Two Stage Momentary
- Foot Switch - Cable
- 20 AWG/6 Cond.
- Foot Switch - Protection Level
- IP 65
- Foot Switch - Colors
- Black with Red Guard
- Foot Switch - Housing
- Black ABS body and pedal cover
- Foot Switch - Electrical Rating
- 5A/125-250V AC
- Foot Switch - Contact Types
- Momentary, maintained, or two stage momentary
- Foot Switch - Circuit
- SPDT-SB, DPDT-SB, 2x SPDT-SB
Datos del producto
- Marca
- Altech
- Número de parte
- 51.665R
- Línea
- Medical Foot Switches
- Categoría
- Interruptores de límite y seguridad
- Precio y entrega
- Por cotización
