51.205R

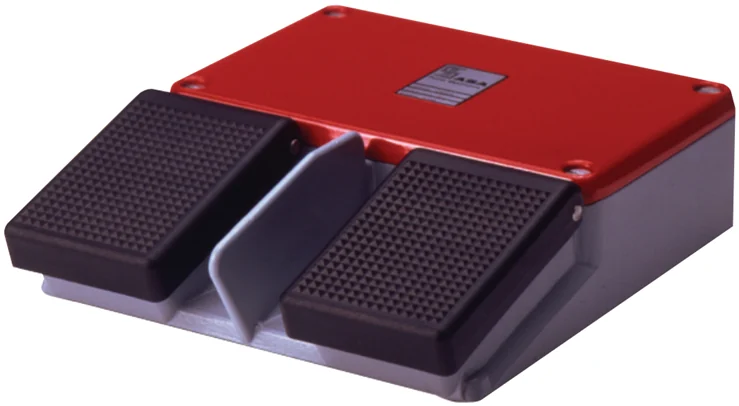

FS2 Heavy duty medium size, two pedal foot switch51.205R - FS2 Heavy duty medium size, two pedal foot switch Standard Features Housing: Die cast aluminum body and cover with Polyamide 6.6 pedals Colors: Gray body, red guard and black pedals Anti-Trip: Die cast aluminum pedal and lever in gray (available on some models) Protection Level: IP 65 Switch Insert: Snap action or slow make-break Silver alloy contact material Electrical Rating: 10A/400V AC (If used with appropriate cable, see cable chart on page 29) Contact Types: Momentary, maintained
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
Especificaciones técnicas
- Foot Switch - Circuit Function
- SPDT-DB
- Foot Switch - Electrical Ratings
- 10A/500V AC
- Foot Switch - Switch/Contact Type
- Snap Action, Momentary
- Foot Switch - Protection Level
- IP 65
- Foot Switch - Colors
- Gray body, Red cover and Black pedal
- Foot Switch - Housing
- "Die cast aluminum body and cover with Polyamide 6.6 pedal"
- Foot Switch - Electrical Rating
- 10A/500V AC
- Foot Switch - Contact Types
- Momentary, maintained, or two stage momentary
- Foot Switch - Circuit
- SPDT-DB; DPDT-DB
- Foot Switch - Cable Screw Terminals
- Yes
- Foot Switch - Anti-Trip
- No
Datos del producto
- Marca
- Altech
- Número de parte
- 51.205R
- Línea
- Medical Foot Switches
- Categoría
- Interruptores de límite y seguridad
- Precio y entrega
- Por cotización
